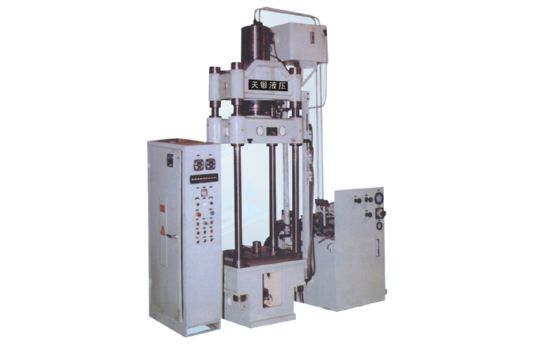

TDY79 series powder products hydraulic press
◆USES and features
This machine is a special apparatus designed according to the user’s requirement. It’s suitable for forming of different powder,such as ferreous base,copper base,wolfram,molybde num,titanium,manganese,boron etc.,and powers of their alloys.When a floating die is adopted,the machine canperform opposing pressing.This machine has an adjustable limiting devia of hig precision restoration,which ensure high precision of axial dimension of work-pieces.The machine is equipped with independent driving mechanism,independent electric system and centralized push button control,which automatize the operation.The machine can perform its processes in rotation automatically or semiautom atically.Also,the operator can actuate mamually(adjustment) each sigle process.The pressure,speed and stroke distance of this machine are adjustable.Two kinds of working methode i.e.Ficced pressure and fixed stroke are selectable.When working under fixed pressure,the machine can perform re-press will reverse automatically when the stroke-switch is hit after the process completed.

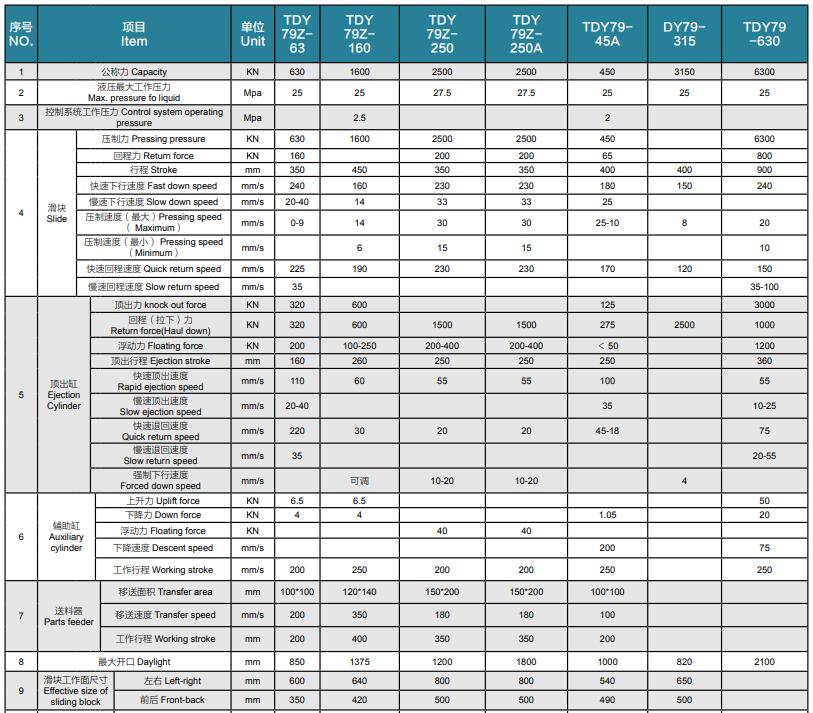

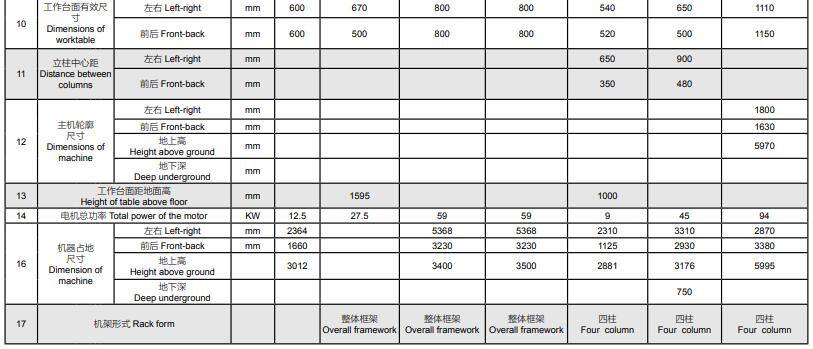

◆The main technical specifications
