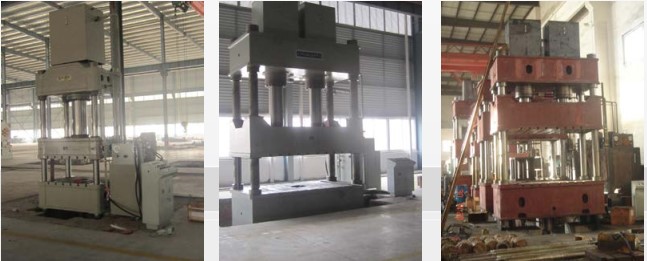

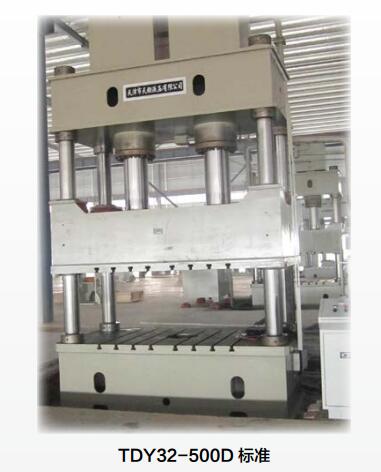

TDY32 series four-column hydraulic press
◆USES and features
Application and features:
This press is suitable for pressure processing of plastic materials,such as forming,sheet metal drawing etc.It can also beused for straightening,press-in,gress-in,griding wheel moulding,cold extrusion of metal parts and plastics moulding and sinered parts compacting.
The press has separate hydraulic motive power system and electric system and electric system. It uses centralized push button control.Three methods of operations.Adjustment manual and semiautomatic operations can be realized.
Working pressure,pressing speed,stroke limit of the press can be adjusted according to process requirement.Two methods of processing operations forming with fixed pressure and forming with fixed stroke can be accomplished.Forming with fixed pressure the press can perform pressure holding and delayed automatic return after pressing process.

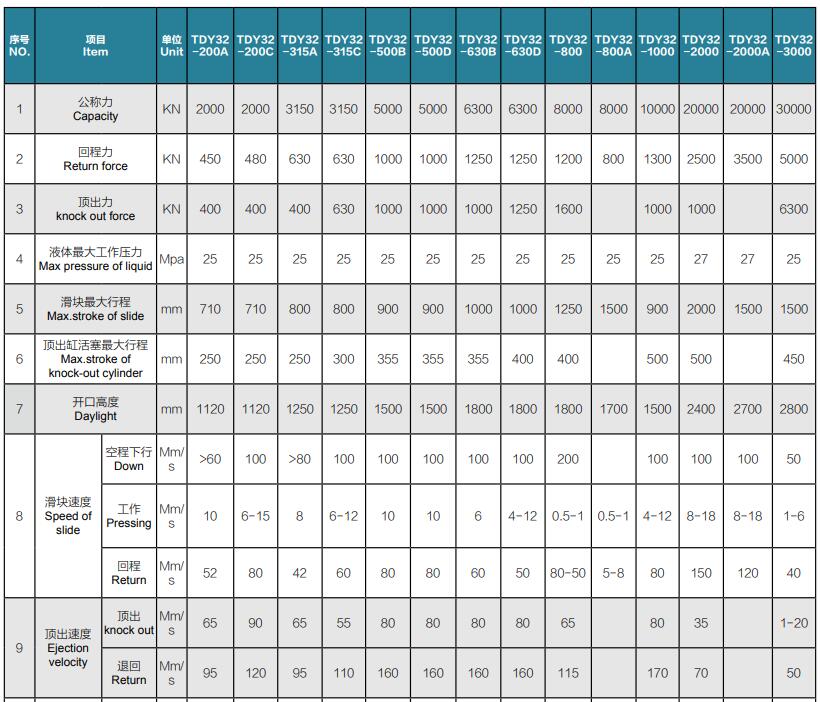

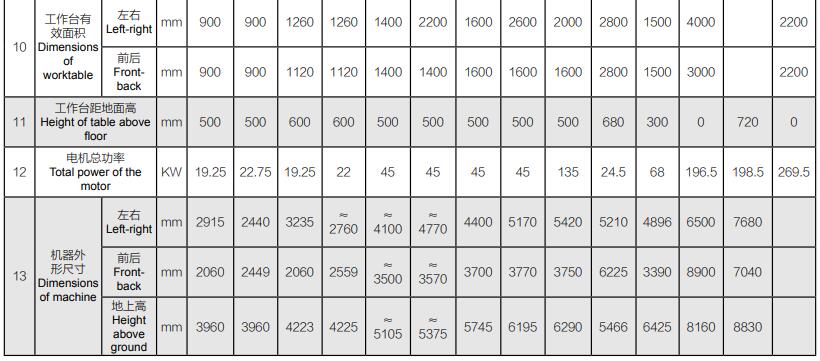

◆The main technical specifications
Application and features:
This press is suitable for pressure processing of plastic materials,such as forming,sheet metal drawing etc.It can also beused for straightening,press-in,gress-in,griding wheel moulding,cold extrusion of metal parts and plastics moulding and sinered parts compacting.
The press has separate hydraulic motive power system and electric system and electric system. It uses centralized push button control.Three methods of operations.Adjustment manual and semiautomatic operations can be realized.
Working pressure,pressing speed,stroke limit of the press can be adjusted according to process requirement.Two methods of processing operations forming with fixed pressure and forming with fixed stroke can be accomplished.Forming with fixed pressure the press can perform pressure holding and delayed automatic return after pressing process.
◆The main technical specifications
