TDY61 series metal extrusion hydraulic press

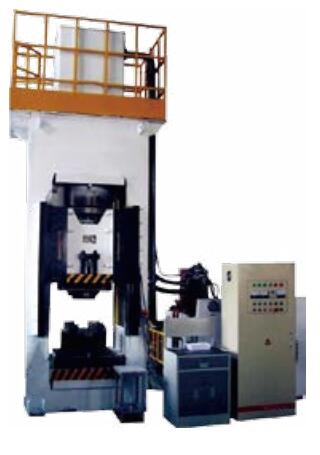

◆ TDY61-400A 630A USES and features
The machine is for cold forming of parts.It is naubly used to produce weought parts for automobiles,tractrs,aircraft etc.It has a frane type con struction with pretension rods thus high accuracy and strengh can be obtained.There are there kinds of operation-adjusting hand-controll,semi-automatic for this machine. This machine uses the slant shaft variable displacement pump,modular type integrated valves and electric-hydraulic proporional pressure adjusting techNO. logy.The pressure indicator uses the secondime instrumet numerical display.NC requimpment is used for the slide stroke control.The electric control system uses PLC equipment for this machine.
The machine is for cold forming of parts.It is naubly used to produce weought parts for automobiles,tractrs,aircraft etc.It has a frane type con struction with pretension rods thus high accuracy and strengh can be obtained.There are there kinds of operation-adjusting hand-controll,semi-automatic for this machine. This machine uses the slant shaft variable displacement pump,modular type integrated valves and electric-hydraulic proporional pressure adjusting techNO. logy.The pressure indicator uses the secondime instrumet numerical display.NC requimpment is used for the slide stroke control.The electric control system uses PLC equipment for this machine.

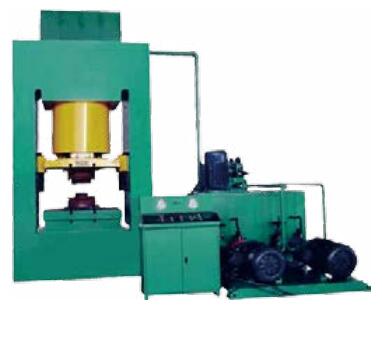

◆ TDY61-1000A USES and features
The machine is for cold forming of metal parts.It is used to produce wrought parts forautomobiles,tractors,aircraft etc.It has a frame type construction with pretesion rods for the machinebody.Thus higher accuracy and strengthness can be obtained.There are two kind of operation-adjusing and semi-automatic for this machine.The hydraulic system usesalant shaft variabe displacements pumps and modular type integrated valves.The PLC is used for the electricontrol system.

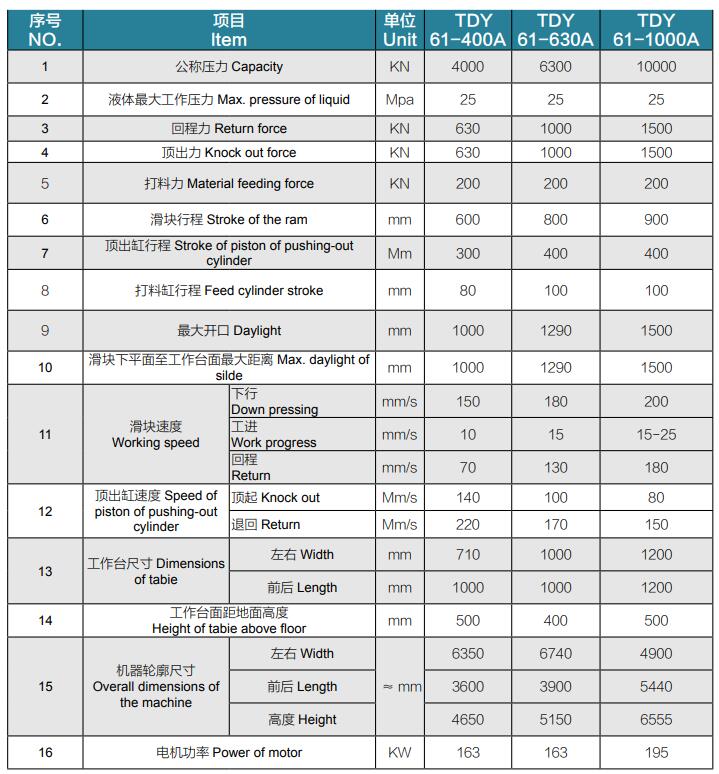

◆The main technical specifications
The machine is for cold forming of metal parts.It is used to produce wrought parts forautomobiles,tractors,aircraft etc.It has a frame type construction with pretesion rods for the machinebody.Thus higher accuracy and strengthness can be obtained.There are two kind of operation-adjusing and semi-automatic for this machine.The hydraulic system usesalant shaft variabe displacements pumps and modular type integrated valves.The PLC is used for the electricontrol system.
◆The main technical specifications
